A3 A4 Paper Making Machine
Product Details

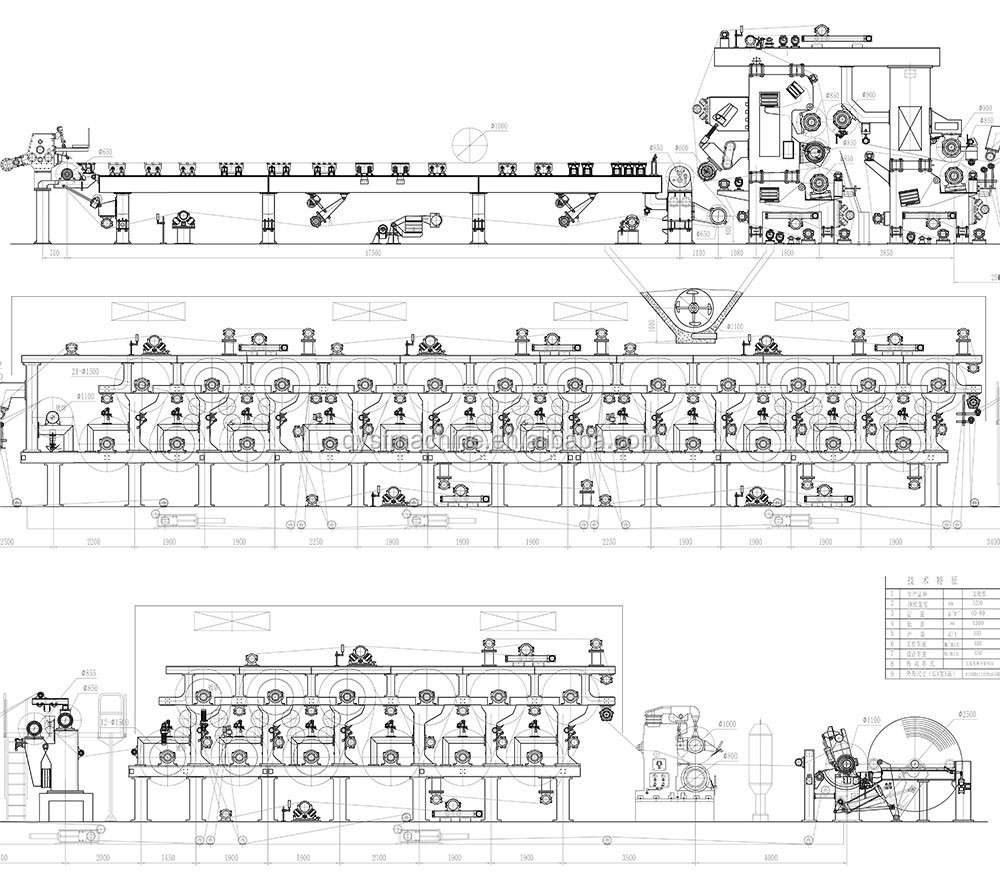

2640-400 long net multi cylinder (A3A4)paper machine: The daily output is 120 tons.
15m mesh case, stainless steel frame, stainless steel dehydration element, 1200 diameter watermark roll, 850 diameter vacuum floating roll, 2950 lip of Maxon air cushion headbox.
Paper making machine is the general name of a complete set of equipment that makes the pulp form the paper web. It includes the headbox, wire section, press section, drying section, calender, paper reel, and transmission section. , Vacuum, lubrication, heat recovery and other auxiliary systems.
Process flow: forming part, pressing part, drying part, surface finishing part, transmission system, white water system, auxiliary system.
Paper-making raw materials: Paper-making raw materials include plant fibers and non-plant fibers (inorganic fibers, chemical fibers, and metal fibers).

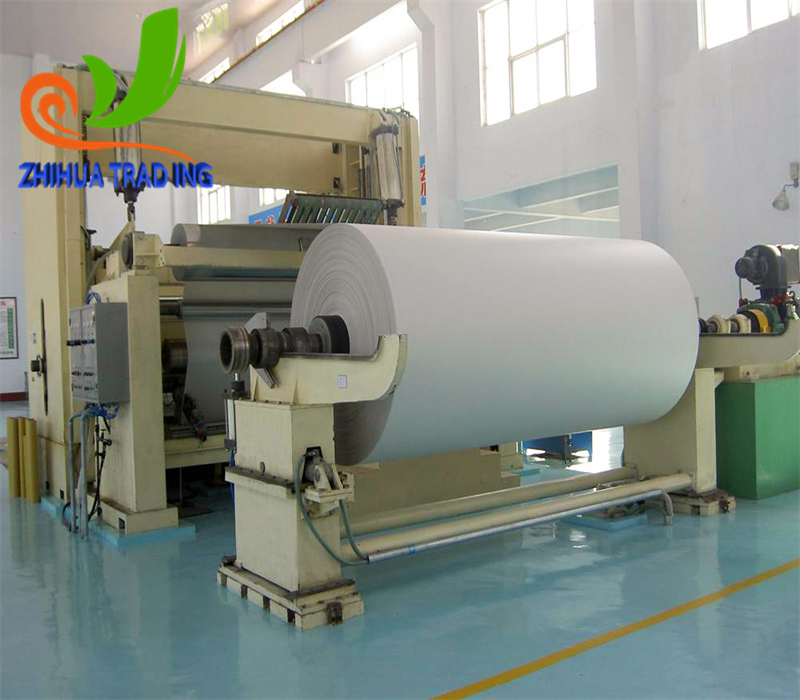

Product Show
Parameters
1) Raw material: waste paper, white off-cuts from printing factory
2) Output paper: cultural paper
3) Net paper width:2640mm
4)Output paper weight: 50-100g/m2
5) Capacity: 120T/D
6) Working speed : 250 - 300 m/min
7)Designing working speed: 350m/min
8) Drive way :Alternating current frequency conversion adjustable speed, section drive
Flow Chat ( What equipment does the production line of paper machine need )
Raw materials (waste paper)——Pulper——vibrating sieve——pulp tank——pulp pump——bleach machine(thruster)——refiner machine——pulp tank——pulp pump——pressure sieve——pulp tank—— pulp pump——except sand machine——net box——cylinder——blanket——paper making machine——drying——roll paper——the big finished jumbo paper —— process machine—Kraft paper.
Raw Material
Finished Paper

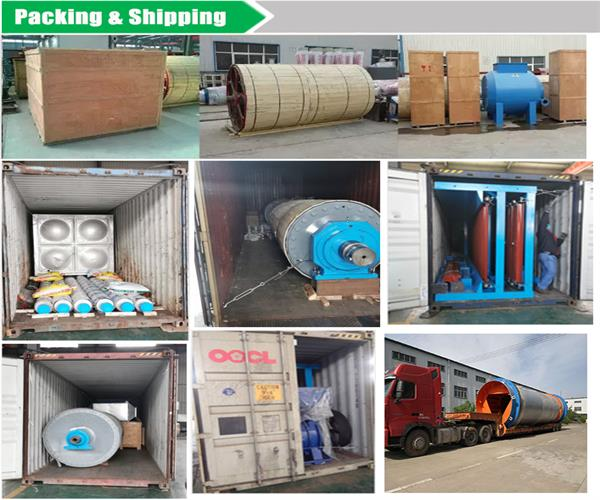

Packing&Shipping
Paper product machine will be packaged according to their shapes, weight, transport distance and transport modes . Large machines will be packaged in sections. Every part of export machinery will be in standard export package sea worthy wooden case, waterproof film, straw rope, carton box etc., which will ensure the intactness of products.
FAQ
Q: When can I get quotation?
A: We usually quoted within 12 hours after receiving your inquiryment.If you are urgented,please email us,we will reply your inquiryment immediately.
Q: What is the advantage about your company?
A:Our company has professional team and professional production line.
Q:Why should I choose your products?
A: Our products are high quality and low price
Q: How can I get a quote/price?
A: We usually quote within 12 hours after your inquiry received. If urgent, please call us or tell us in your email.
Q:Any other good service your company can provide?
A:Yes,we can provide good after-sale and fast delivery.
