High Speed Hydraulic Rotary Joint
Product Details
High-speed rotary unions are capable of containing very high pressure while rotating at high speeds. The materials used in the making of the high-speed rotary unions are aluminum, carbon steel, and, upon request, stainless steel, which provides outstanding corrosive resistance. We specialize in custom design that provides our customers with the exact specifications that they require. Speak to our knowledgeable and personable sales staff and they will be happy to assist in the creation of the prototype that will meet your needs.
Features
1. Drain hole reflux design to prevent leakage to the outside and affect the environment;
2. The shell material can be made of aluminum alloy, stainless steel or brass according to different working conditions;
3. Special products can be customized according to customers' working conditions and connection requirements;
4. The leakage of ML series high-speed and high-pressure rotary joints can generally be controlled within 200ml / min;
Application
Electric devices
Medical facility
Industrial machinery
Chemical equipment
Process control equipment

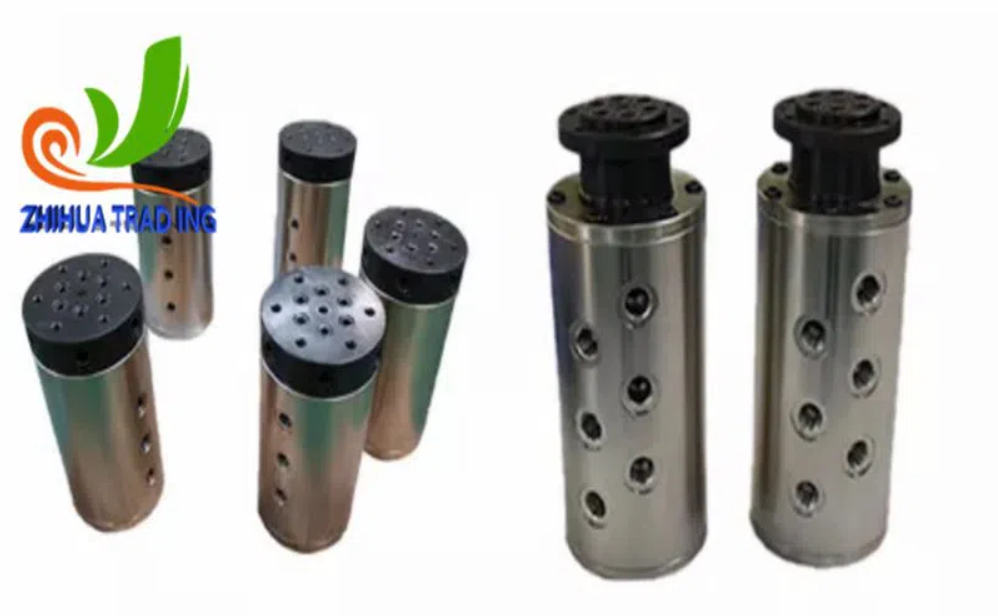

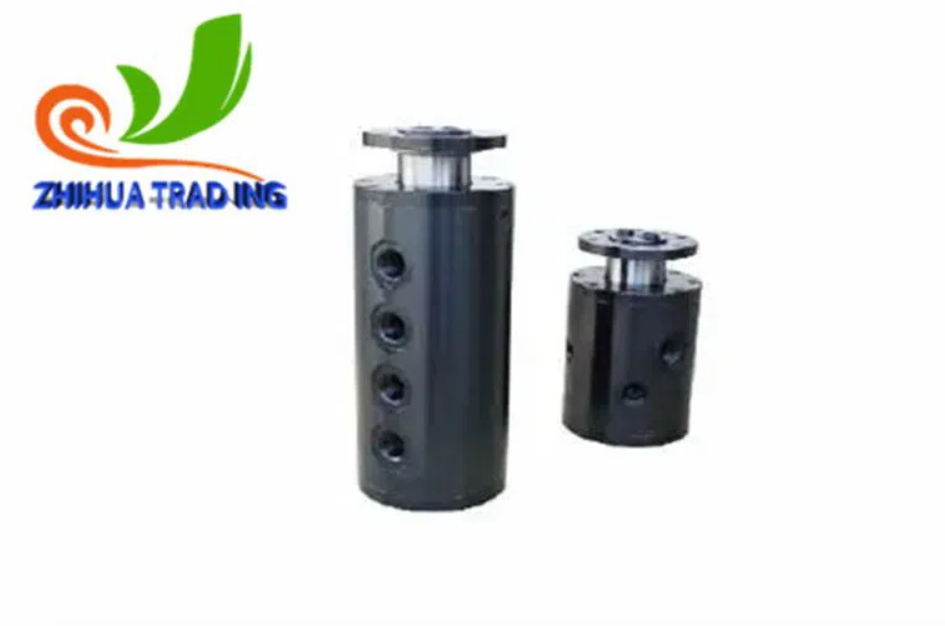

Product Show
Parameters
|
Speed |
3000RPM |
Temperature |
70℃ |
|
Pressure |
25Mpa |
Applicable media |
Hydraulic oil |
Size Table
Application

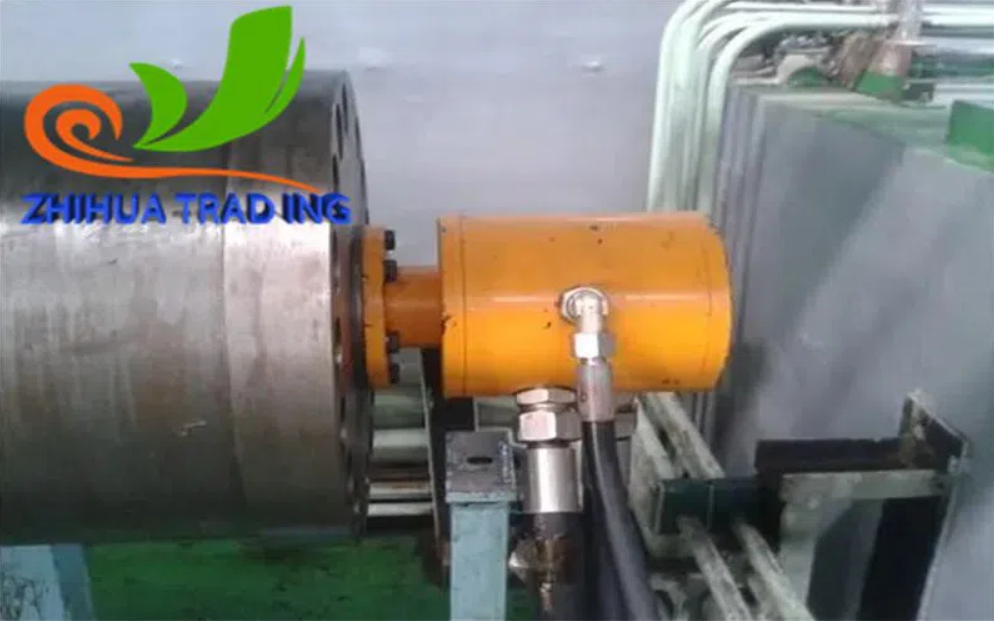

Hydraulic rotary joint is mainly used in metallurgical machinery, rolling machinery, paper machinery, construction machinery and many other industries.
Packing &Shipping
Packing
Products will packaged according to their shapes, weight, transport distance and transport modes.
standard export package sea worthy wooden case waterproof film, straw rope, carton box etc.
Shipping
Sea transportation is from Qingdao seaports or other china main ports.the delivery time is decided by machine types.But we also try to make it follows your needs.
Q.What is the selling point of this rotary joint?
The rotary joint is characterized by good rotary sealing and long service life.
Q.What type of seal is used for this swivel joint?
This joint adopts corrugated type compensator, balanced combined seal, long service life and low rotary resistance.
Q.How long can I use this product?
Normal use for more than 1 year.
Q.How about the quality of your rotary joints?
Our company is very professional in the production and development of various types of rotary joint, with more than 20 years of production experience and professional design team.
Q.When can we deliver the goods after payment?
We will arrange shipment as soon as possible after payment. Our company has sufficient stock of common products.
Q.If l don't know what kind of the product I need, what should I do?
A: Just take it easy,you just need to provide us "working pressure","temperature" and "media."Then, we can suggest the most suitable product to you,or we provide you our e-catalogue for your reference,you choose the suitable model,you only need to tell us the model number.
Q.What about after sale?
The company has a professional team of engineers for all products escort.
