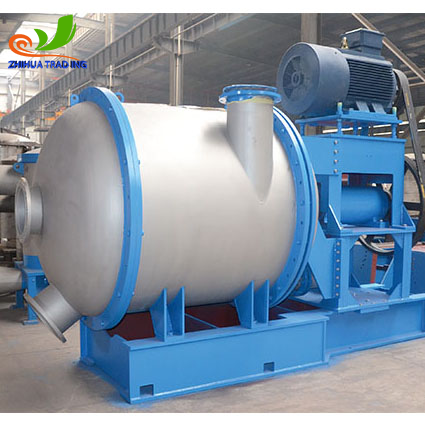

1.The main body is an inverse conical design,concave top structure,can from a stong vortex,forming a low pressure area in the top center and getting the light impurities and discharge them outside effectively.
2.Pulp outflow chamber of rotor is higher than undersurface of shell,forming a low pressure area around the rotor to collect heavy impurities.Under centrifugal force,the heavy impurities are thrown to the outermost of eddy and deposit in the groove that is outside the seive plate for discharging.At the same time,it will reduce wear to cutter and seive plate,prolong the service life of them.
|
Type |
FQJ0.4 |
FQJ0.8 |
FQJ2 |
|
Norminal Volume(m3) |
0.4 |
0.8 |
2 |
|
Treating Consistency(%) |
0.5-2 |
||
|
Capacity of production(T/D) |
35-45 |
65-85 |
110-140 |
|
Power of Motor(Kw) |
30 |
55 |
110 |
