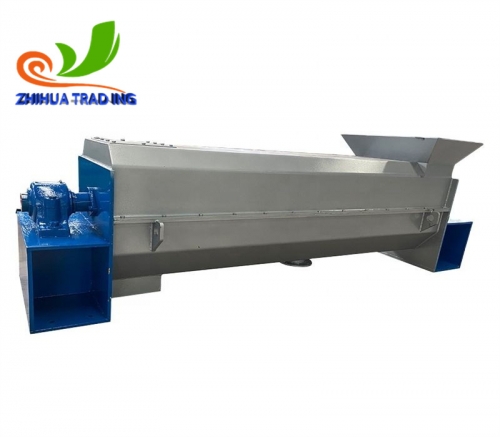

Paper Industry Single Spiral Squeeze Pulp Machine

INQUIRY
Description

Product Details

     The stainless steel single spiral squeeze pulp machine is a highly efficient and reliable machine used in the paper mill industry for pulp extraction. This machine is designed to handle a wide range of raw materials, such as wood chips, straw, and other renewable resources. It has a simple structure, which makes it easy to operate, maintain, and clean.

        The single spiral squeeze pulp machine is a pulper used for pulp dehydration. It can effectively handle various slurry concentrations. The concentrated pulp has uniform dryness and stable pulp yield. The degree of fiber percussion is rarely affected, and the non clogging and non slipping design reduces the wear and corrosion of the screw. Mainly used for extracting black liquor from large pulp mills: Installed under a spray bin, the black liquor is separated from the pulp by mechanical extrusion of a variable diameter and pitch screw, and the black liquor is separated from the filter frame to the black liquor tank. The pulp concentration can also be adjusted using a back pressure device at the discharge point. This equipment can also be used to concentrate finished pulp and sell it directly as commercial pulp.

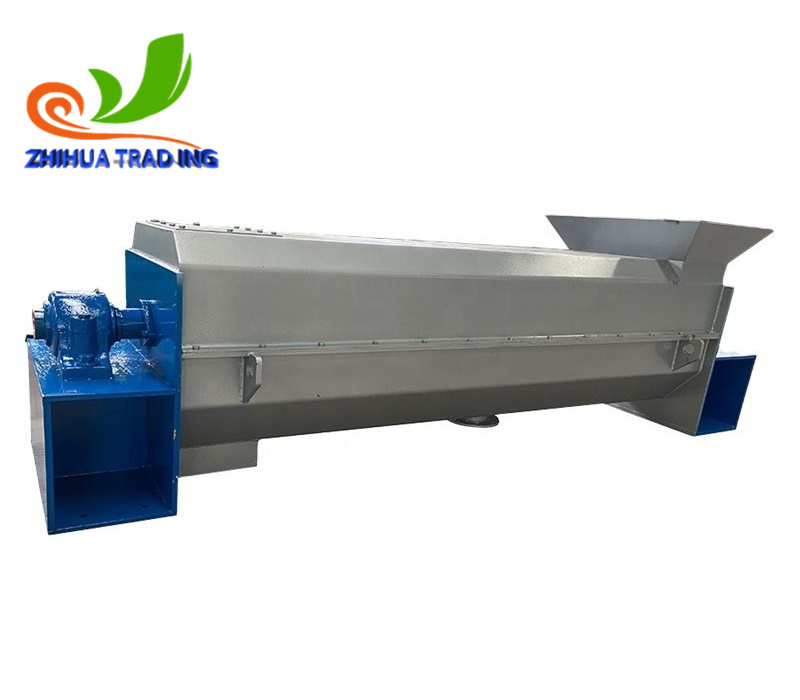

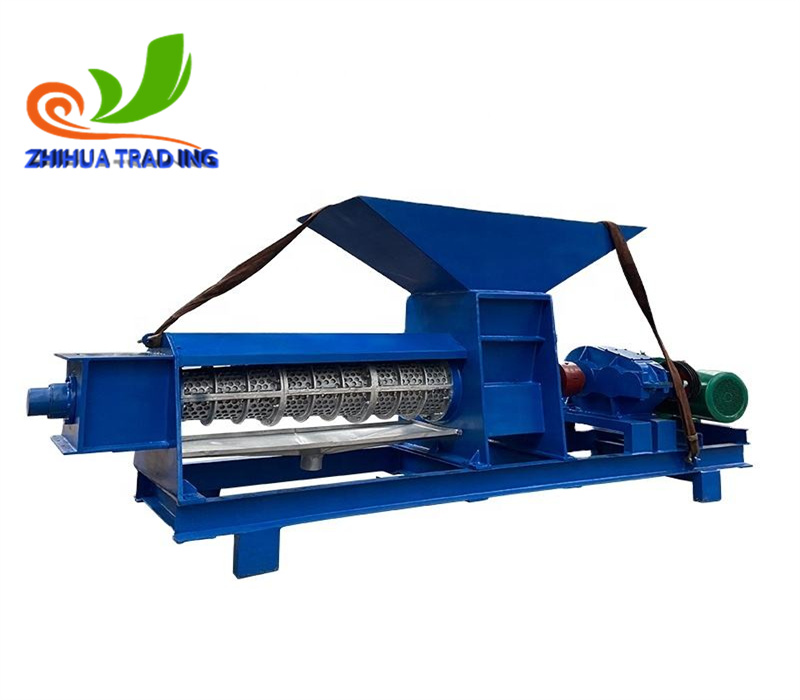

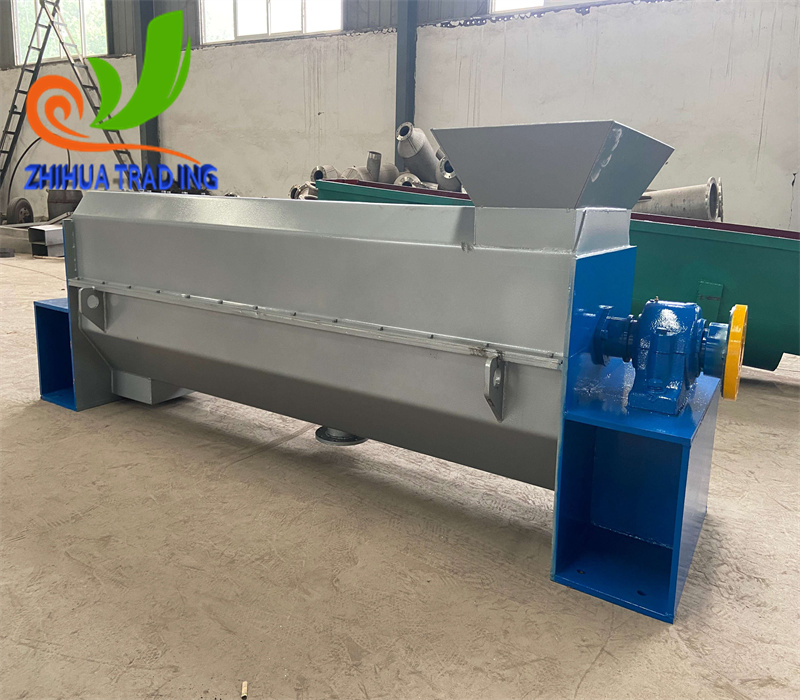

Product Show


Product Data

Model                                                                                                    ATRT350
Specification Φ350mm
Inlet Concentration 10-14%
Outlet Concentration 25-35%
Capacity 10-15T/D
Power 15KW

Packing&Shipping

  • By the same token, some countries have marine transportation business, then we use the most economical and safe marine transportation. However, there are no ports near some countries, so you can use adjacent ports or rail transportation, which will save some costs.
  • We will make the strong package to protect the goods for you.
  • for safety, you can choose export carton or wooden.
  • FAQ
  • Q: What is the advantage about your company?
  • A:Our company has professional team and professional production line.
    Q:Why should I choose your products?
    A: Our products are high quality and low price
    Q: How can I get a quote/price?
    A: We usually quote within 12 hours after your inquiry received. If urgent, please call us or tell us in your email.
    Q:Any other good service your company can provide?
    A:Yes,we can provide good after-sale and fast delivery.
