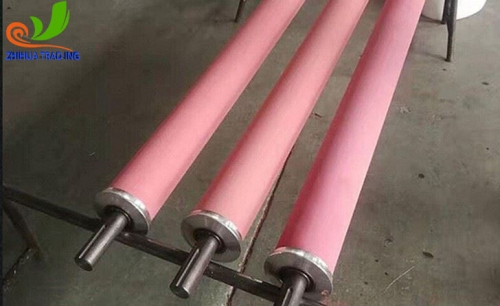

Paper machine banana roller
Description
The arc roller is a roller that has a certain curvature in the longitudinal direction and is fixed and
rotatable by a ball bearing.Because the curved roller has a certain curvanture,when the paper/film
is rotated by the guide roller,the paper/film will be elongated in the longitudinal direction to achensive
the effect of stretching the web,eliminating wrinkles and preventing the web from progressing possible
interleaving during material slitting.
This type of curved roller is often used in the calendering,calendering coating,compounding and other
processing of paper and board paper,fur,film,textile and other materials.According to user requirements
and different application,the adhensive surface can be choose wear resistance,high temperature resistance
and surface slotting.Teflon sleeves and other special requirements can also be added.
Application
1.Paper machine
2.Film machine
3.Textile machine,and so on.
Technical parameters
| Parameters |
Specifications |
Remarks |
| Working width |
1600-3800mm |
Customized by customers |
| Outer diameter |
Φ100mm/Φ120mm/Φ125mm/Φ150mm/Φ180mm |
/ |
| Shaft diameter |
Φ30~φ80mm |
Customized by customers |
| Shaft material |
Stainless steel 304/316/316L,Carbon steel,Stainless iron |
/ |
| ARC height |
25mm~80mm |
Customized by customers |
| Working temperature |
-40℃~+150℃ |
/ |
| Rubber material |
CSM,EPDM or NBR |
/ |
| Rubber hardness |
Shore A 65°~Shore A 90° |
/ |
| Rubber colour |
Black/White |
/ |
| Operation environment |
High temperature,high humidity,strong acid or strong alkali,close type environment. |
CSM hypalon applied |
| |
High temperature,strong acid or strong alkali,open type environment. |
|
| |
Low temperature(Below 0℃) |
/ |
| |
Normal temperature |
/ |
| Applications |
Stenter |
/ |
| |
Mercerizer |
/ |
| |
Weft straightener |
/ |
| |
Liquid ammonia finishing machine |
/ |
| |
Washing machine |
/ |
| |
Desizing machine |
/ |
| |
Scouring machine |
/ |
| |
Other deying&printing machine |
/ |
Our Factory
Shipping
Q1: When can I get quotation?
A: We usually quoted within 12 hours after receiving your inquiryment.If you are urgented,please email us,
we will reply your inquiryment immediately.
Q2: How should I place an order?
A:Please send us shaft roller drawings or more requirement,we will write back unit price base on all of your
requirements.
Q3: What's your MOQ basis?
A:MOQ depend on customized rollers drawings normally MOQ≥1.
