Paper Machinery Pulp Propeller
Product Details

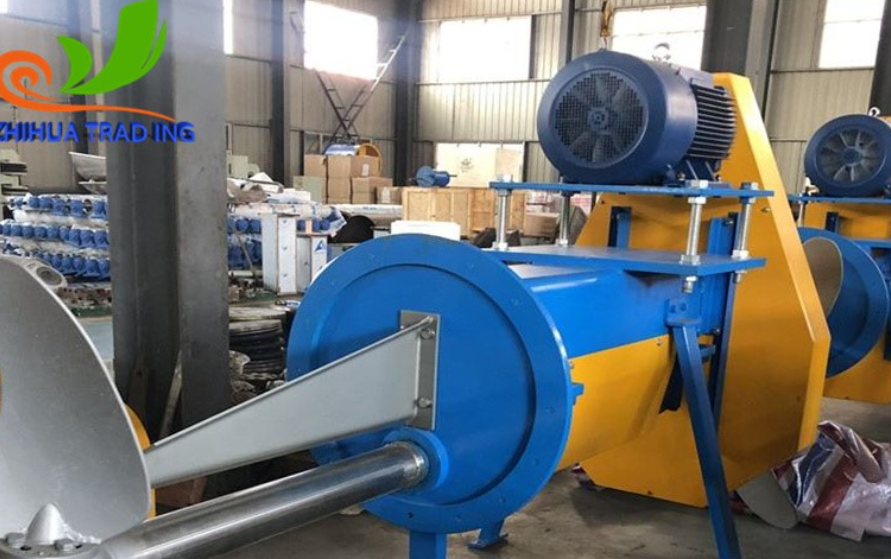

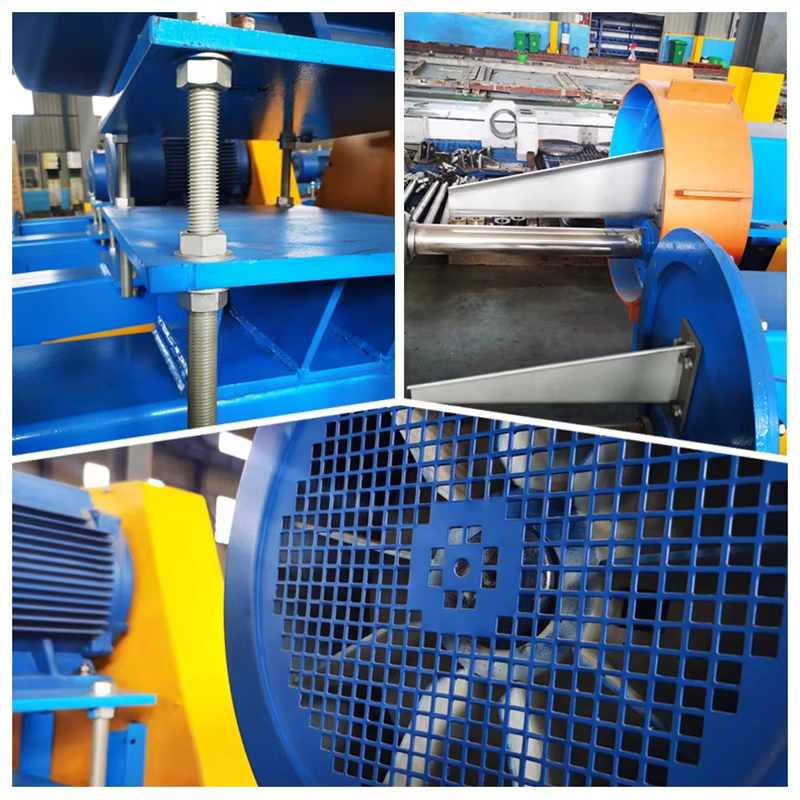

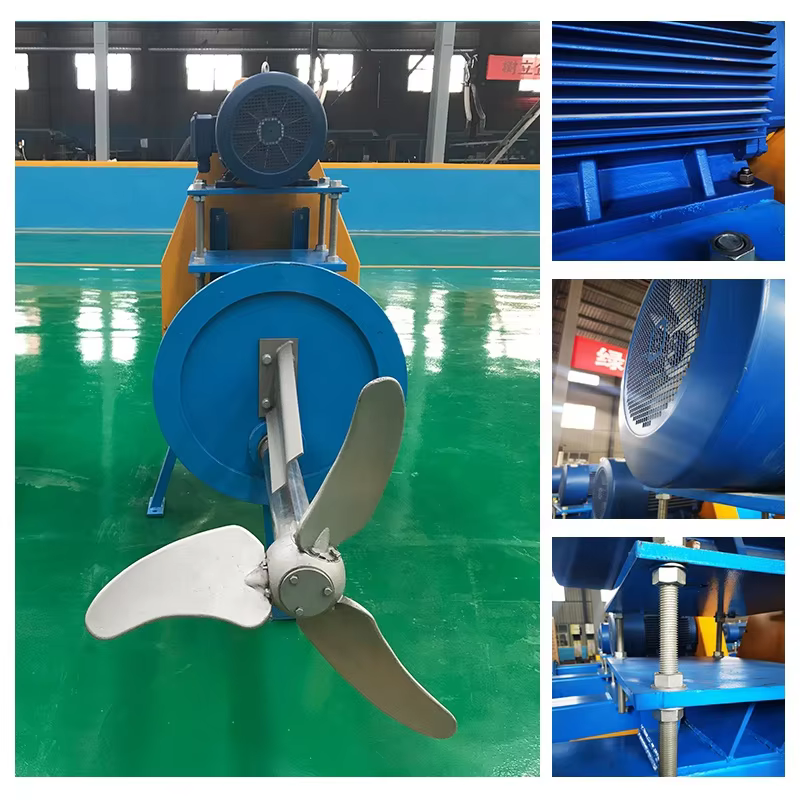

Paper pulp vertical agitator is a machine commonly used in the paper industry to mix and homogenize pulp fibers in the preparation of paper pulp. These agitators consist of a vertical shaft with blades or impellers attached that spin at high speeds to create turbulence and agitation within the pulp.
The main purpose of the vertical agitator is to ensure that pulp fibers are evenly dispersed and well mixed throughout the pulp suspension. This is necessary to produce paper with consistent properties and quality.
The vertical agitator can be installed at different stages of the papermaking process, such as during the pulp washing, bleaching, or refining stages. The machine can operate in both batch and continuous processing modes.
In addition to mixing and homogenizing, vertical agitators can also be used to facilitate chemical reactions in the pulp. For example, the addition of certain chemicals during the pulping process can help to break down and dissolve hemicellulose and lignin, which can then be removed from the pulp.
The vertical agitator can help to ensure that these chemicals are evenly distributed throughout the pulp, which can improve the efficacy of the pulping process.
The vertical agitator is an important component of the papermaking process, helping to ensure that pulp fibers are evenly dispersed and mixed to produce high-quality paper products.
Product Features
1.Large propulsion capacity, the slurry is not easy to flocculate;
| Model | NH-JB500 | NH-JB700 | NH-JB750 | NH-JB1000 |
| Volume of tank m3 | 15-30 | 40-60 | 60-80 | 80-100 |
| Pulp concentration % | <5 | <5 | <5 | <5 |
| Impeller diameter mm | 500 | 700 | 750 | 1000 |
| Impeller speed r/min | 300 | 240 | 220 | 180 |
| Power kw | 7.5 | 11 | 15 | 22 |
Packing
Products will packaged according to their shapes, weight, transport distance and transport modes.
Large machines will be packaged in sections.every part export machinery will be in standard export package seaworthy wooden case waterproof film, straw rope, carton box etc.

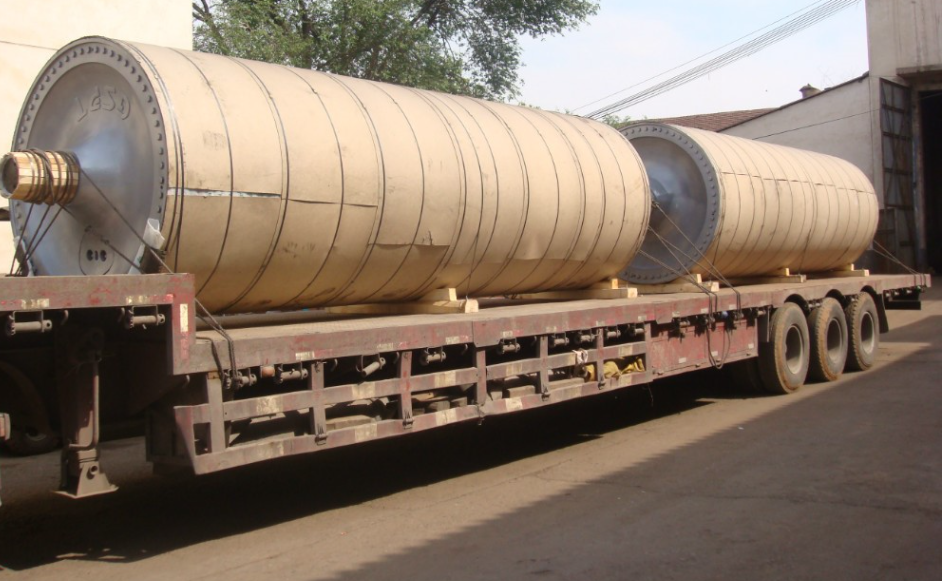

Shipping
Sea transportation is from Qingdao seaports or other china main ports.the delivery time is decided by machine types.But we also try to make it follows your needs.
Q: When can I get quotation?
A: We usually quoted within 12 hours after receiving your inquiryment.If you are urgented,please email us,we will reply your inquiryment immediately.
Q: Are you trading company or manufacturer ?
A: We are factory
Q:I can not find our products in your catalog ,can you make customized products for us ?
A:Yes ,Customized products are available .
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q.What are your quality control procedures?
A: We adhere to strict quality control procedures that begin with product design and carry through to the end of the production process using state-of -the-art quality control equipment.
