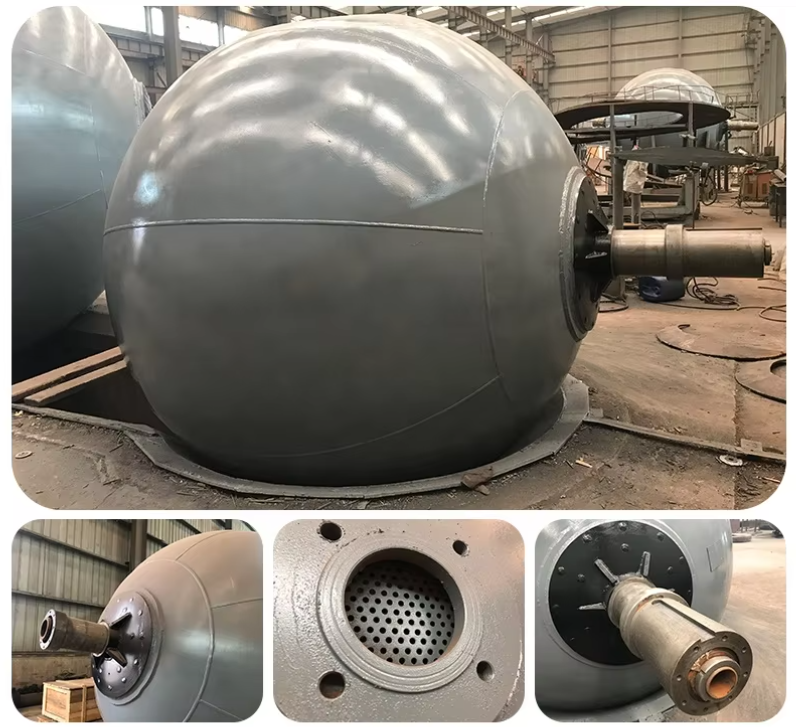

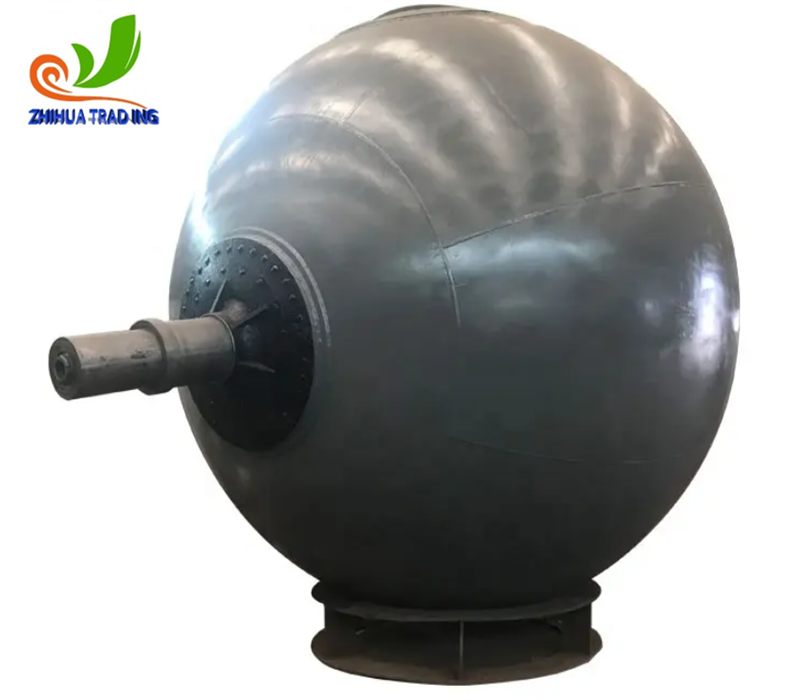

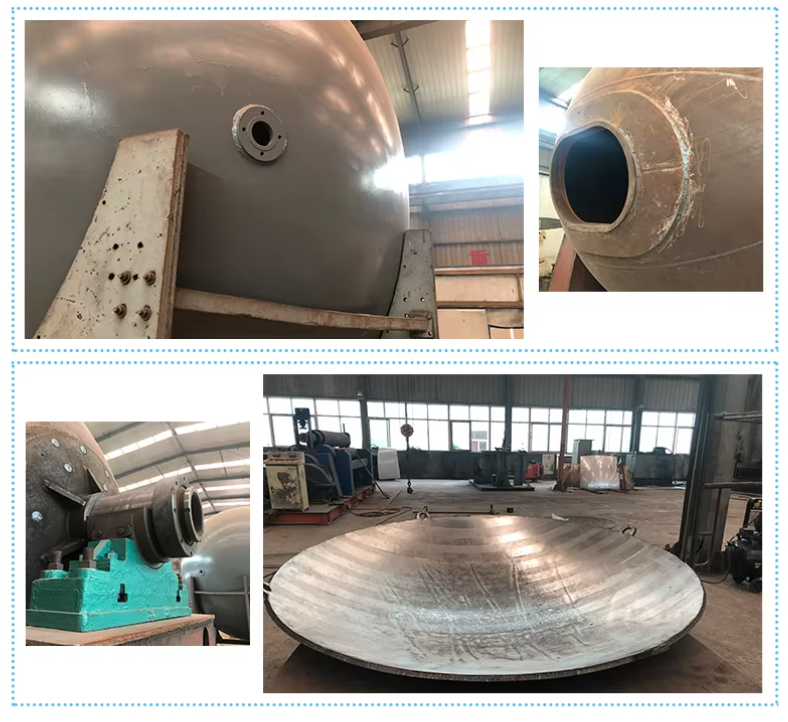

Paper Making Equipment Rotary Spherical Digester
The advantage of the rotary spherical digester is that the raw materials in the ball and the liquid medicine are fully mixed, the quality of the pulp is relatively uniform, the liquid ratio is low, the liquid medicine concentration is high, the cooking time can be shortened, the equipment is simple, the investment is small, and the management and maintenance are easy.
Rotary spherical digester parameters
| Product Name | Rotary Spherical digester |
| Max designed Pressure | 0.88MPa |
| Max working pressure | 0.8MPa |
| Hydraulic test pressure | 1.26MPa |
| Design temperature | 200℃ |
| Sphere nominal inner diameter | 3650mm |
| Sphere volume | 25m³ |
| Sphere rotate speed | 0.48r/min |
| Inlet hole size | 600*900mm |
| Inlet Diameter | 80mm |
Packing&Shipping
Packaging
products will packaged according to their shapes, weight, transport distance and transport modes. Large machines will be packaged in sections.every part export machinery will be in standard export package seaworthy wooden case waterproof film, straw rope, carton box etc
Shipping
sea transportation is from Qingdao seaports or other china main ports. the delivery time is decided by machine types.But we also try to make it follows your needs.
