Paper mill machine double disc refiner for paper pulp making
Product Description
The double disc refiner paper pulp making equipment designed and manufactured by Zhihua Company is traditionally installed in stock preparation plants,for both waste paper and virgin pulp,to improve fibers characteristics in order get a better sheet formation and enhance its properties.It can be used alone,or multiple refiners can be used in series or in parallel,based on the requirements of the pulp refining process.

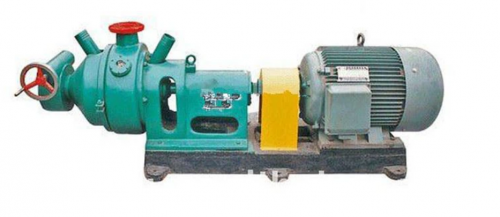

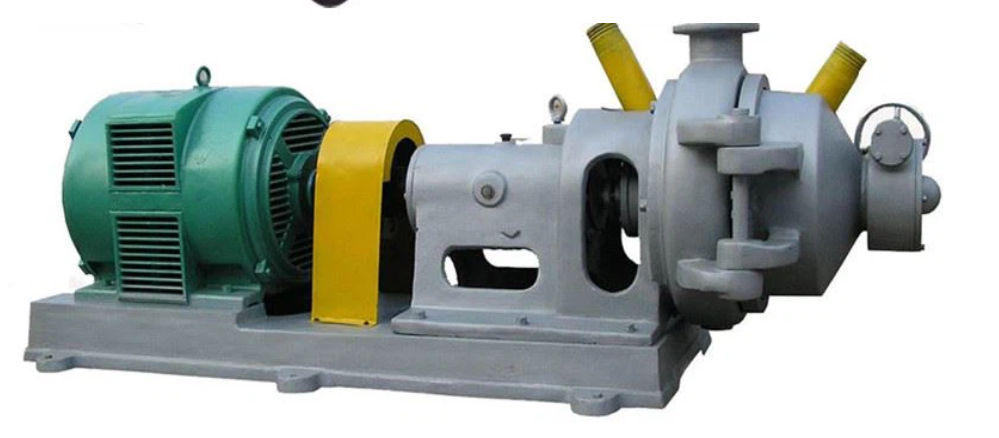

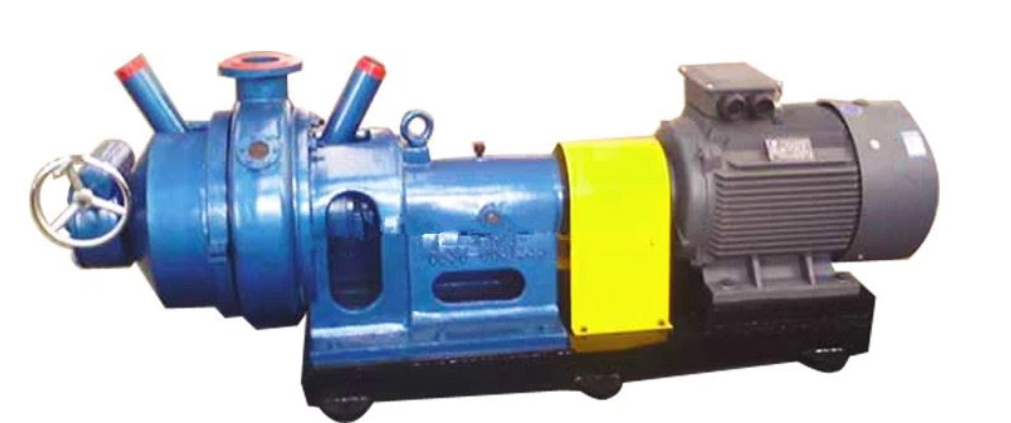

Product Show
Product Application
The Double Disc Refiner mainly used for coarse and fine refining of pulp,broken paper,recycled pulp,and it is available for pulping long fiber pulp materials,such as cotton pulp,wood pulp and hemp pulp.
Technical Parameters
|
Model |
DD450 |
DD500 |
DD550 |
DD600 |
DD660 |
DD720 |
DD900 |
|
Diameter of disc (mm) |
∅450 |
∅500 |
∅550 |
∅600 |
∅660 |
∅720 |
∅900 |
|
Disc speed (r/min) |
980 |
980 |
980 |
980 |
750 |
750 |
750 |
|
Capacity (t/d) |
8-80 |
10-100 |
10-120 |
12-150 |
12-200 |
15-250 |
20-400 |
|
Power (kw) |
90-160 |
132-200 |
160-250 |
200-315 |
220-500 |
250-800 |
315-1000 |
|
Pulp consistency (%) |
3-5 |
||||||
|
Max operating pressure (MPa) |
no more than 0.6 |
||||||
Product Features
1. Adopt consistant power control system,beating degree is stable.
2. Accurate retract mechanism,easy to control,the beating effect is good.
3. Rotor and stator have various teeth.Suitable for various raw material.
