Product Details
Polyester mesh is very important for a paper machine in a paper mill. In the general formation of paper depends on wire cloth and refining of paper pulp. Paper machine wire cloth (polyester forming mesh ) made from polyester or polyamide monofilaments. To shape an uninterrupted belt, it is made by endless of a seam. During woven of forming fabric, filaments are composed of the paper machine direction and paper machine cross direction. The filaments of paper machine direction or lengthwise are called warp. One the other hand the filaments of paper machine cross direction are called weft or Shute or filling. The construction of wire cloth depends on some weaving variables such as pattern, mesh, yarn, diameter, degree of crimping etc. Mesh is very important for a wire cloth (forming fabric). Water drainage and retention of fibers depend on it.

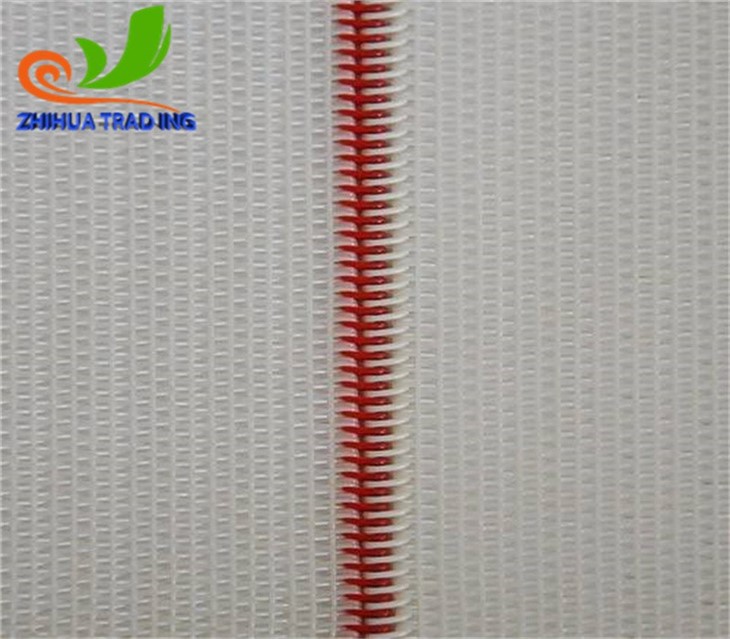

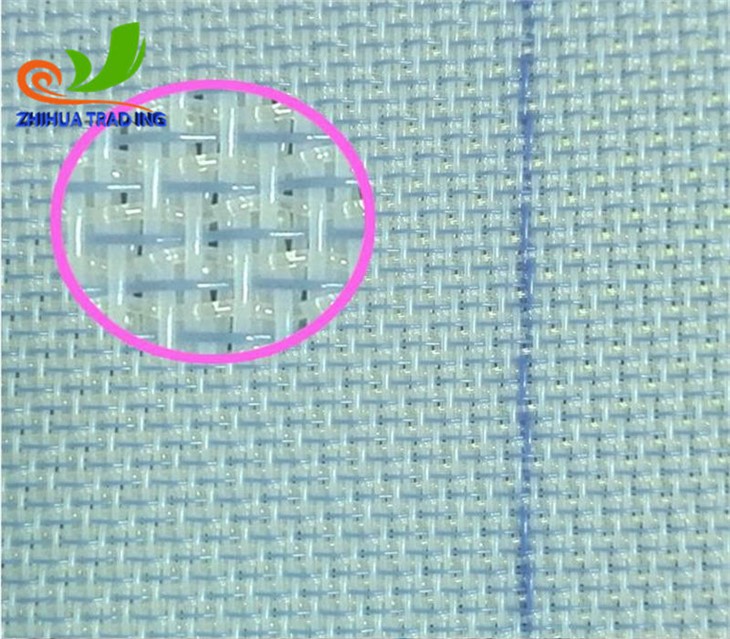

Product Show
Application

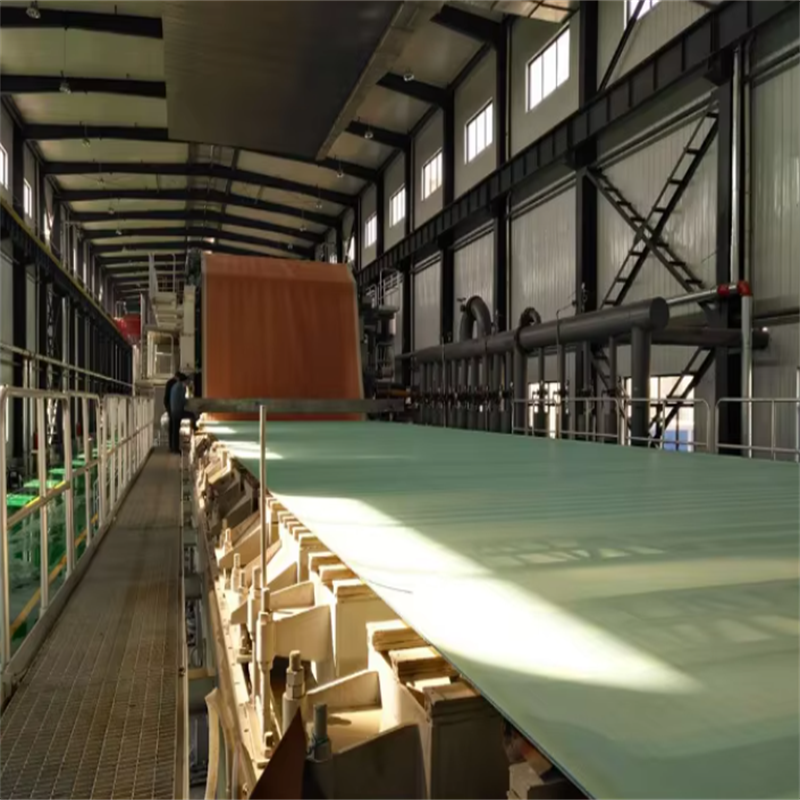

Used for paper machine forming part
Parameters
|
Type |
Specification of single loop |
Monofil diamater |
Strength(N/cm ) |
Thickness(mm) |
Weight (m2kg ) |
permeability (m3/m2h Air ) |
|
|
Spiral loop |
Threading |
||||||
|
Super loop |
4.8X10 |
0.9 |
1.1 |
2300 |
3.03 |
1.64 |
21000 |
|
Super loop |
3.8X7.0 |
0.68 |
0.9 |
2000 |
2.45 |
1.4 |
18000 |
|
Medium loop |
3.5X6.0 |
0.68 |
0.9 |
2000 |
2.45 |
1.31 |
16000 |
|
Small loop |
3.2X5.2 |
0.5 |
0.8 |
1800 |
1.87 |
0.97 |
15000 |
Packing&Shipping
In order to keep goods safty, We will pack goods according to their shapes, weight. Considering different transport distance and transport modes.We use wooden case, plastic cloth, blanket, and according to customers requirment.
