SN Type Steam Rotary Joint for Corrugated Line
Product Description
SN Steam rotary joint is mainly used in papermaking machinery, dryer, coater, calender, single corrugated machine, three-layer, five layer and seven layer corrugated board production line, rubber and plastic industry, etc.
Product Features
1. Positive spherical seal design
2. Standard graphite or antimony impregnated graphite sealing material
3. Double oil-free bearing support
4. Maximize support spacing
5. Prolong sealing life and improve reliability
6. Easy to replace
7. Rotary or fixed siphon

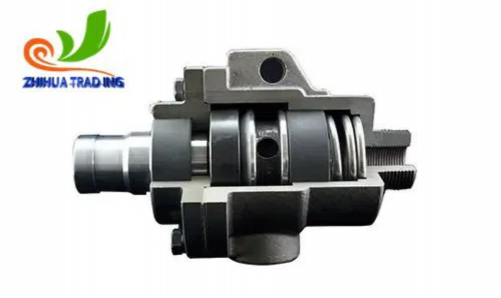

Product Mix
1. Elbow
2. Shell
3. End cap
4. Outer tube
5. Siphon
6. Oil free bearing
7. Graphite ring
8. Spring

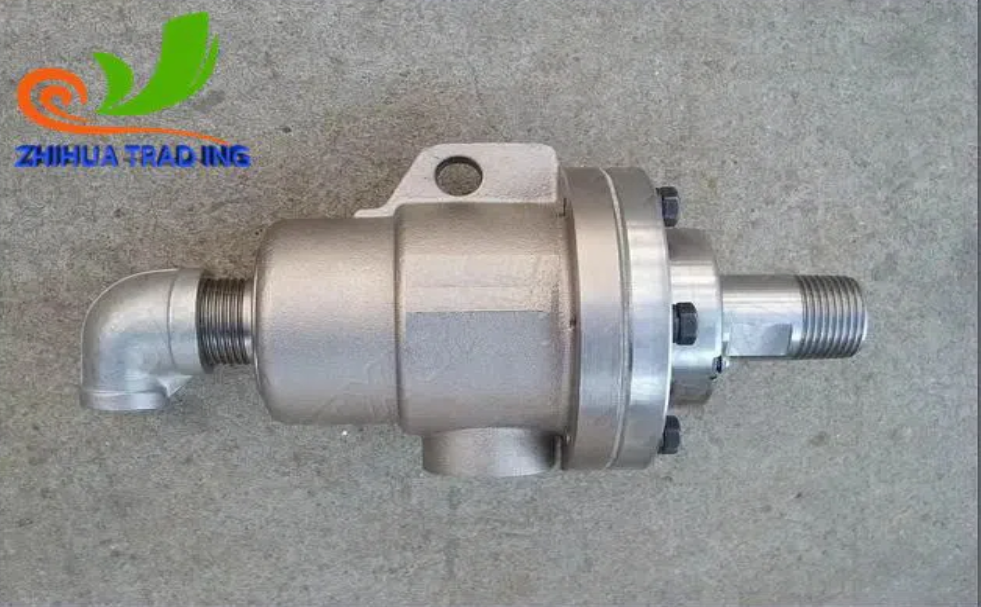

Product Show
Parameters
|
Speed |
50-250RPM |
Temperature |
280℃ |
|
Pressure |
32Bar |
Media |
Steam |
|
Size range |
3/4’’——8’’ |
Packing&Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Q1.What kind of medium that the rotary joint used for?
A.We have different kind of rotary joint for hot /coolant water,steam, hot/oil,air.
Q2.Can you custom based on my specification or drawing?
A.Yes, customized the specification or drawing is aviailable, just according to your request.
Q3.What is the price of your products?A.Different kind of our products have different price, should be decided according to specified size.we can supply the best and competitive price to you.
Q4: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q5.What is your after-sale service?
A. Our products warranty for 1 year.If you have any problems can contact us.
