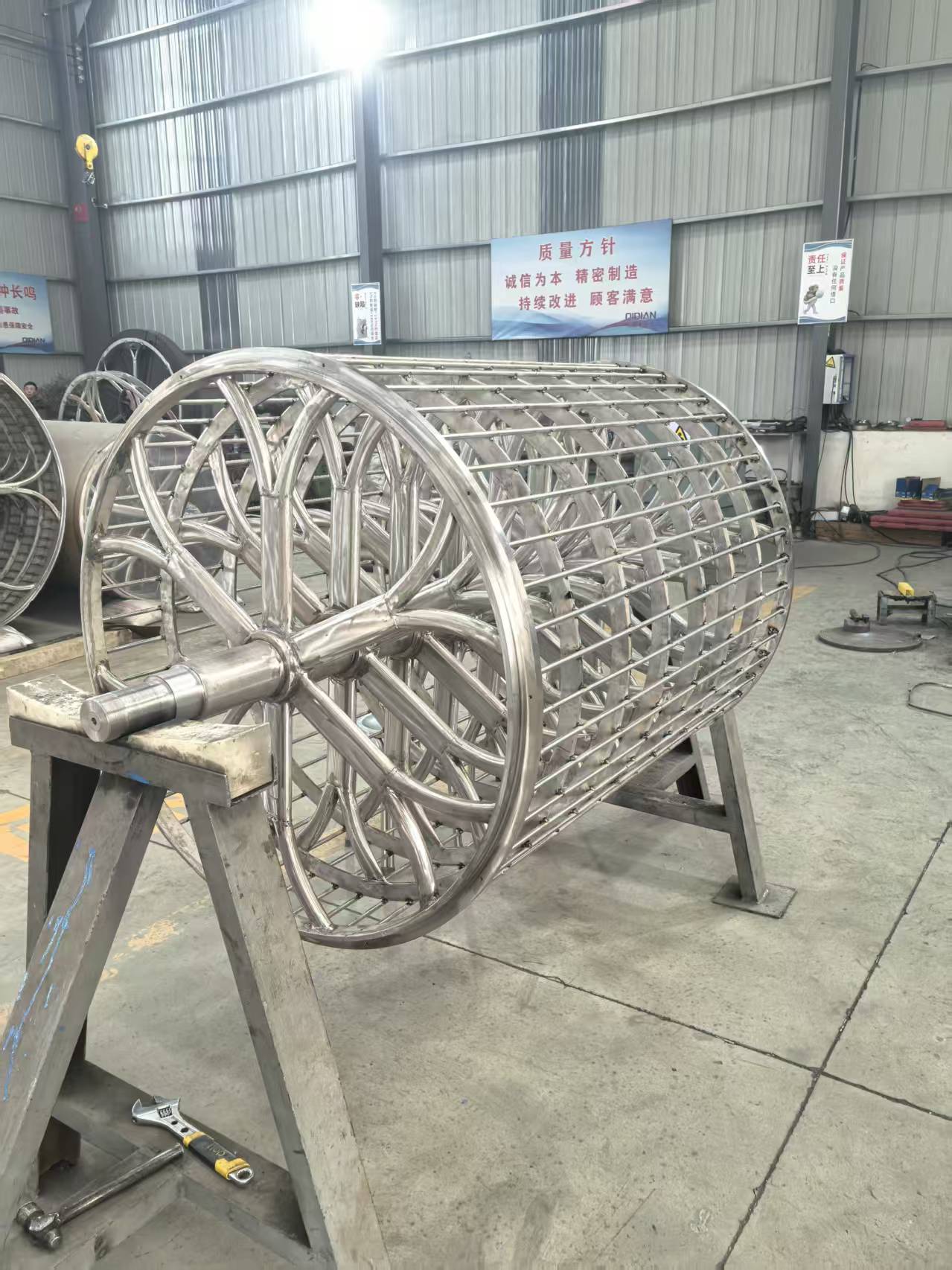

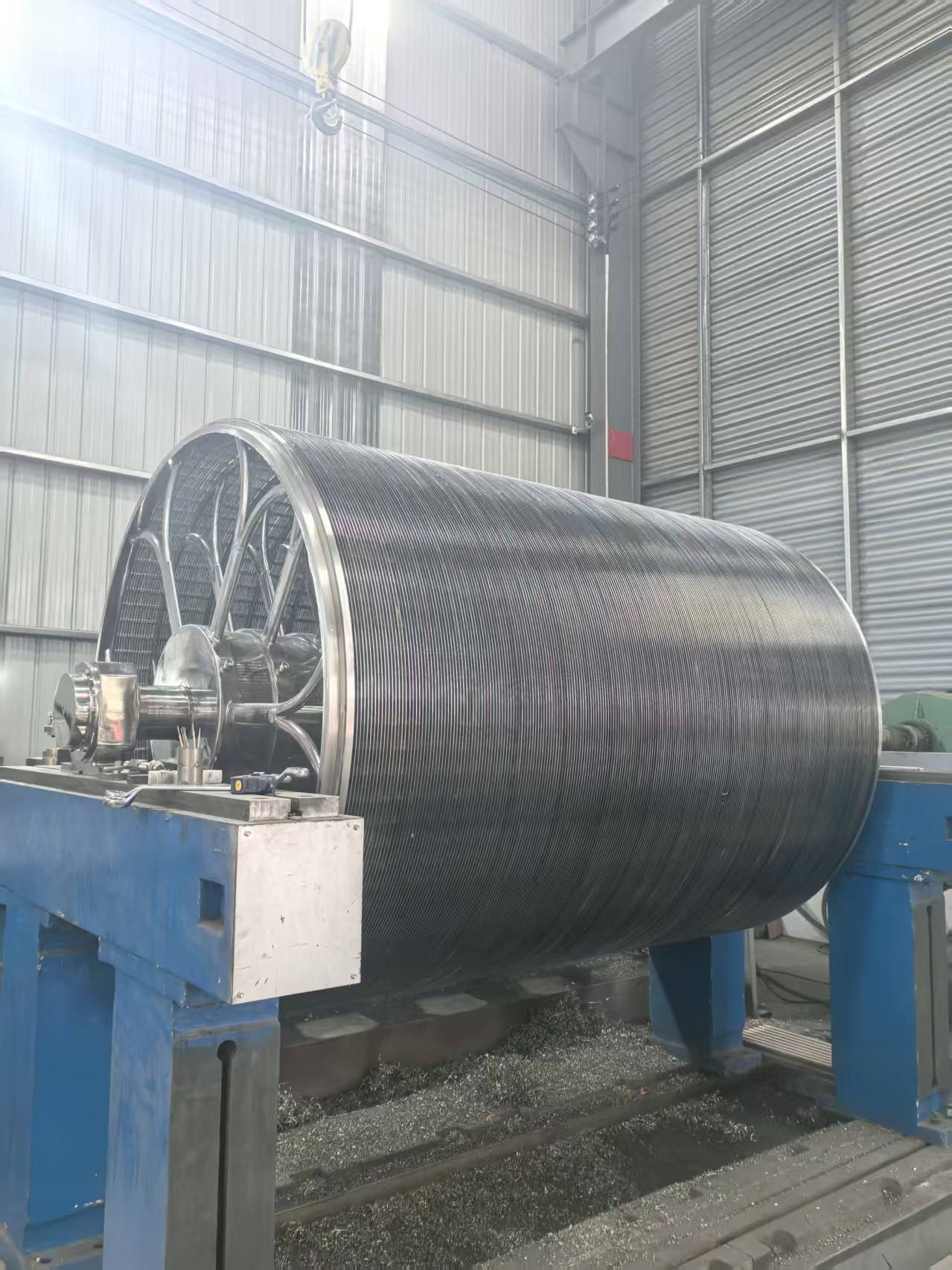

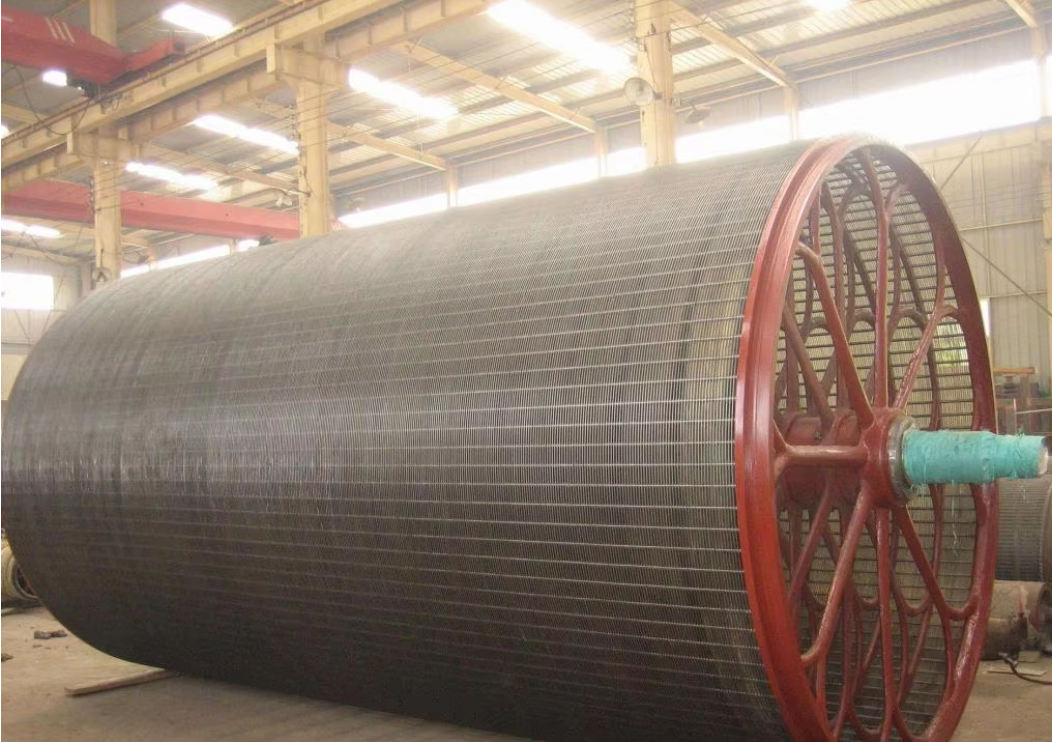

Cylinder Mould is a paper forming device consisting of a cylindrical mesh cage, a net slot and a volt roll. Under pressure of pulp flow, the pulp enters the mixing chamber through multiple branch pipes after pressure on the vertebral canal, so that the slurry fibers are interlaced and rapidly dehydrated in the molding area.
Cylinder Mould Former
A complete set of mould former include: cylinder mould, couch roll , guide roll, felt foil box ,movable spray pipe ,frame and base plate .
Foundation part including sole plate, anchor bolt ,nut etc. foundation drawing content : reserve hole position ,size, elevation, the static and dynamic load of each driving point. it is only for technical reference. the sole plate material is cast iron HT200, through 2 times again eliminate stress processing.
Products Data
| Different Usage Type |
paper making cylinder mold, concentrate cylinder mold |
| Different Structure Type |
Common,piece-type,air exhaust,vacuum |
| Material Type |
Stainless steel/copper |
| Specification Diameter(mm) |
1000, 1250, 1500, 1800, 2000 |
| Working Face Range(mm) |
1000-5000 |
| Main Characteristics |
improve water filter area and speed, increase the capacity |

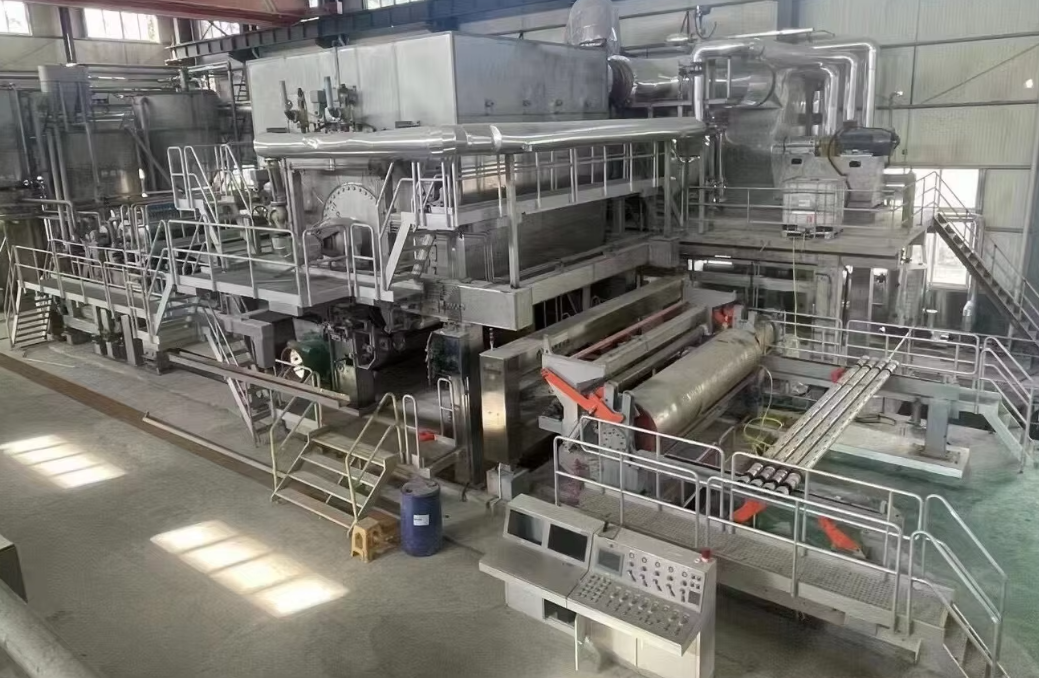

Application
Packing And Shipping
Different products will packaged according to their shapes, weight, transport distance and transport modes. large machines will be packaged in sections. every part of export machinery will be in standard export package-seaworthy wooden case, waterproof film, straw rope, carton box etc., which will ensure the intactness of products.
FAQ
Q1. Are you factory or trade company?
A1. Zhihua is a manufacturer, we also supply trade service.
Q2. What about your price?
A2. We always supply the products with low price, because we believe this is the way to build long-term business and earn good reputation.Our price is 3%-5% lower than the average market price.
Q3. How about your delivery time?
A3: Generally, it will take 15-20 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q4: How do you make our business long-term and good relationship?
A4: We keep good quality and competitive price to ensure our customers benefit;
Q5: How can you guarantee the quality or any warranty?
A5: If any quality problems during use, all the products can be returned or according to consumer's requests.
