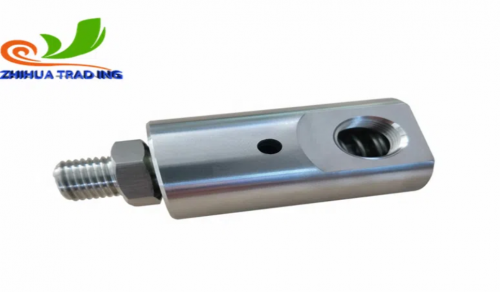

High Speed Coolant Hydraulic Rotary Joint
Product Details
High speed rotary joints are specially designed for high speed water, hot oil, compressed air or low pressure steam. In order to resist the abrasion of hard impurities and abrasive particles entering with the medium, the main sealing elements of the product are imported sealing materials. The rotating body adopts special processing technology to prevent wear and corrosion. At the same time, two high precision bearings are used to support the whole copper shell, so that it can run smoothly for a long time without leakage under high speed.
Advantages
1.Labyrinth seal
2.Leakage holes protect bearings
3.High precision bearings operate stably without vibration
4.Hardened stainless steel rotor
5.Stainless steel spring mounted outside the fluid
6.Excellent balanced seal ensures minimum friction
7.The shell is made of aluminum alloy
8.Tungsten carbide sealing surface with wear resistance, heat resistance and impact resistance
Product Mix
1. End cap
2. Shell
3. Outer tube
4. Graphite ring
5. Stationary ring seat

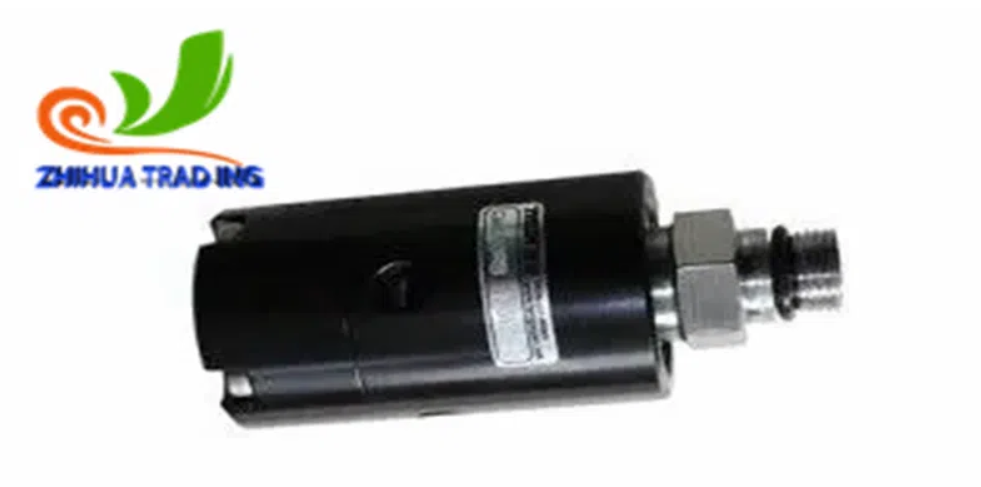

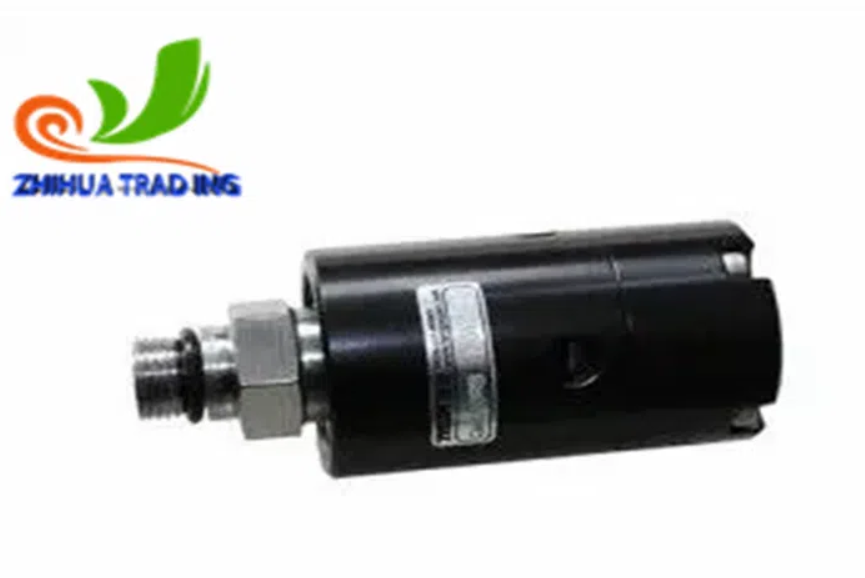

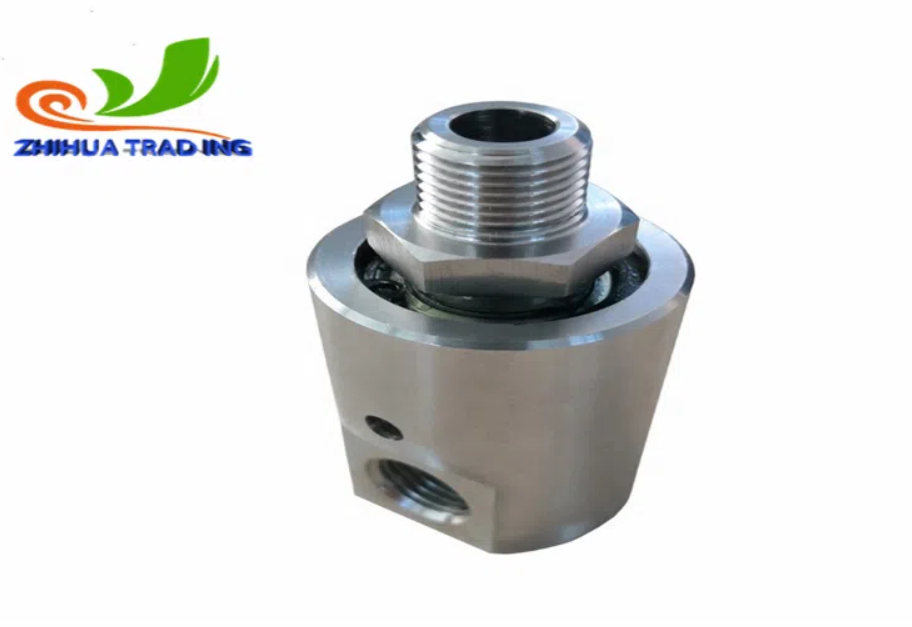

Product Show
Parameters
|
Media |
BAR（MAX） |
℃（MAX） |
RPM(MAX) |
L/MIN(MAX) |
|
Coolant |
70 |
70 |
12000 |
80 |
Note: this joint is not suitable for dry operation.
Size Table
Model Table
Note:Maximum limites vary in relation to changes in media,size,rpm,pressure and temperature.Consult us for safe limitations under your specific application conditions.
Packing&Delivery
By the same token, some countries have marine transportation business, then we use the most economical and safe marine transportation. However, there are no ports near some countries, so you can use adjacent ports or rail transportation, which will save some costs.
FAQ
Q:Are you manufacturer or trading company?
A:Zhihua is a professional manufacturer.
Q:If l don't know what kind of the product I need, what should I do?
A: Just take it easy,you just need to provide us "working pressure","temperature" and "media."Then, we can suggest the most suitable product to you,or we provide you our e-catalogue for your reference,you choose the suitable model,you only need to tell us the model number.
Q: Will you charge us for drafting if we have special requests?
A:No, we will not. Free of charge to make a draft or offer.
Q:How long the warranty will be?
A: 1 year warranty.
Q:Any other good service your company can provide?
A:Yes,we can provide good after-sale and fast delivery.
