High Speed Rotary Joint for Machine Tool
Product Details
Precision bearings do not require lubrication
Stable operation without vibration
Hardened stainless steel rotor
The shell is made of aluminum alloy or brass
Excellent balanced seal ensures minimum friction
The designed inlet medium is air, coolant and hydraulic oil
Standard carbon graphite and hardened steel or carbon graphite and silicon carbide
For built-in installation

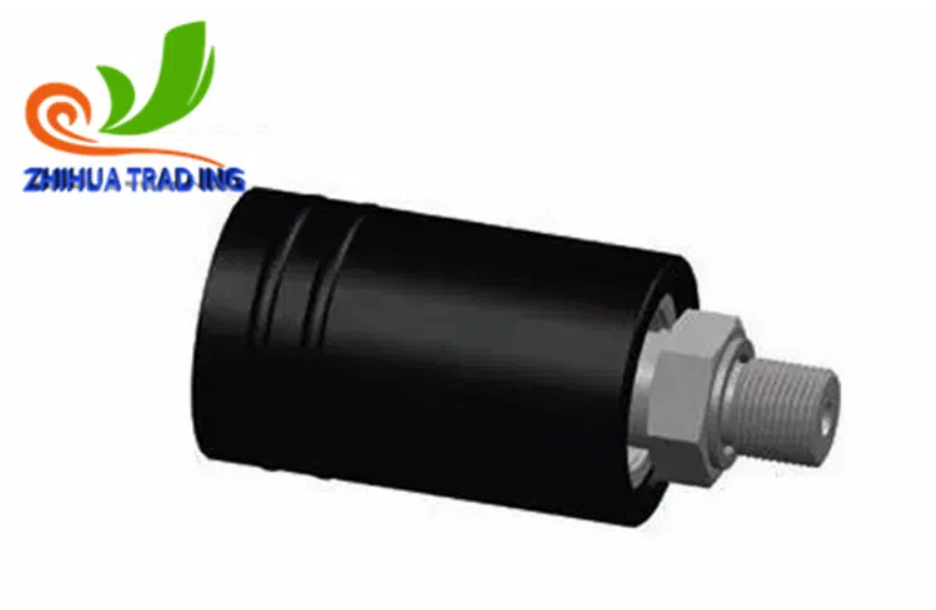

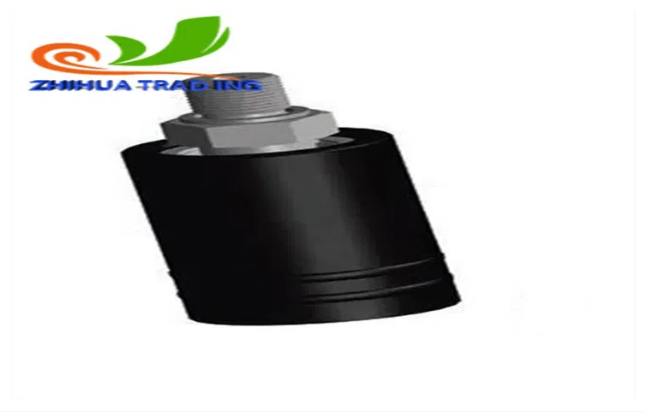

Product Show
Parameters
|
Media |
BAR(MAX) |
℃(MAX) |
RPM(MAX） |
|
|
Taper pipe thread |
Straight pipe thread |
|||
|
Air |
10 |
120 |
1500 |
1500 |
|
Cooling liqiud |
50 |
120 |
1500 |
3500 |
|
Hydraulic oil |
50 |
120 |
1500 |
3500 |
Note: this joint is not suitable for dry operation.
Size Table
Model Table
Note:Maximum limits vary in relations to change in media,size,rpm,pressure and temperature,Comsult us for safe limitations under your specific application conditions.
Packing&Delivery
By the same token, some countries have marine transportation business, then we use the most economical and safe marine transportation. However, there are no ports near some countries, so you can use adjacent ports or rail transportation, which will save some costs.
Q:Are you manufacturer or trading company?
A:Zhihua is a professional manufacturer.
Q:How could we confirm the details of the products?
A: Zhihua will provide all the drawings for your confirmation.
Q: Will you charge us for drafting if we have special requests?
A:No, we will not. Free of charge to make a draft or offer.
Q:What are your quality control procedures?
A: We adhere to strict quality control procedures that begin with product design and carry through to the end of the production process using state-of -the-art quality control equipment.
Q:How long does it take for you to keep the product quality ?
A:Our product warranty 1 year, 1 year is our product quality problem, will free for the customer to replace the damaged parts.
