Hydraulic Swivel Joint
Product Details
The rotary joint is applicable to the chemical and metallurgical industries, providing the function of mutual swing or rotation between the pipes conveying fluid.
Rotating Joints are used in many manufacturing processes to cool,heat or transfer fluid (pneumatic or hydraulic) power. Typical rotating unions feature deep groove ball bearings to support the rotating component against the stationary component, and balanced,precision-engineered mechanical seals to seal the media flow.Rotating unions vary for each application, depending on design, bearing type, construction and material required.
Features
1.The shell and outer pipe are made of stainless steel, which is corrosion-resistant;
2.both ends are connected by flanges to facilitate disassembly;
3. adopt high pressure resistant sealing ring to ensure sealing reliability;
4. it is applied to the connection between hard pipes and has a special support structure to ensure the stability of rotation;

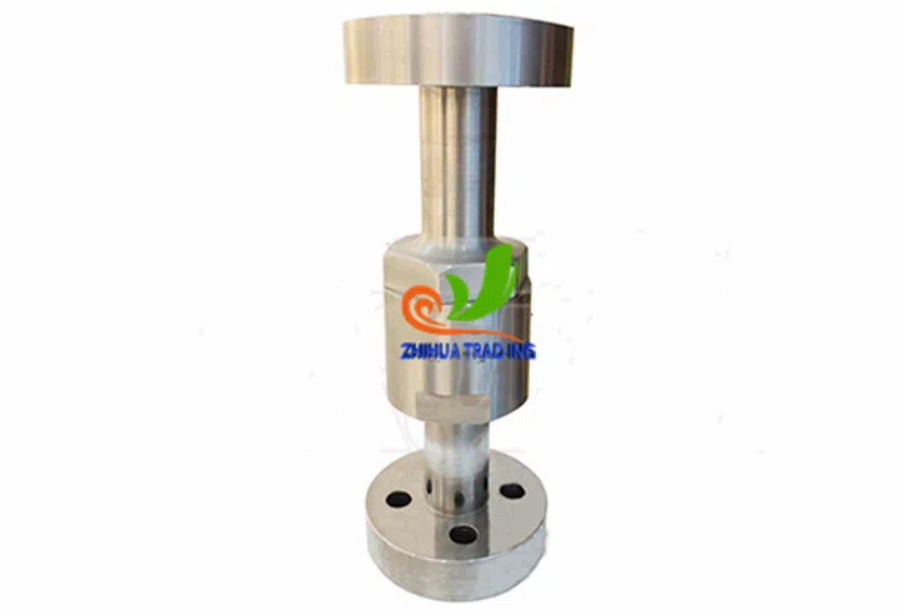

Product Show
Parameters
|
10RPM |
Temperature |
-30~100℃ |
|
|
Pressure |
21MPA |
Media |
Water,Glycol |
Packing&Delivery
By the same token, some countries have marine transportation business, then we use the most economical and safe marine transportation. However, there are no ports near some countries, so you can use adjacent ports or rail transportation, which will save some costs.
Q:Are you manufacturer or trading company?
A:Zhihua is a professional manufacturer.
Q：If l don't know what kind of the product I need, what should I do?
A: Just take it easy,you just need to provide us "working pressure","temperature" and "media."Then, we can suggest the most suitable product to you,or we provide you our e-catalogue for your reference,you choose the suitable model,you only need to tell us the model number.
Q: Can you make the product as per client's requirement?
A: Yes, we can make it with your exact requirement
Q: Where is your nearest loading port?
A: Shanghai, Qingdao or Tianjin, China.
Q: How can you guarantee the quality or any warranty?
A: Check the specification, material and appearance before delivery,and approve the delivery after qualified
B: Support third-party inspection
Q:How long the warranty will be?
A: 1 year warranty.
