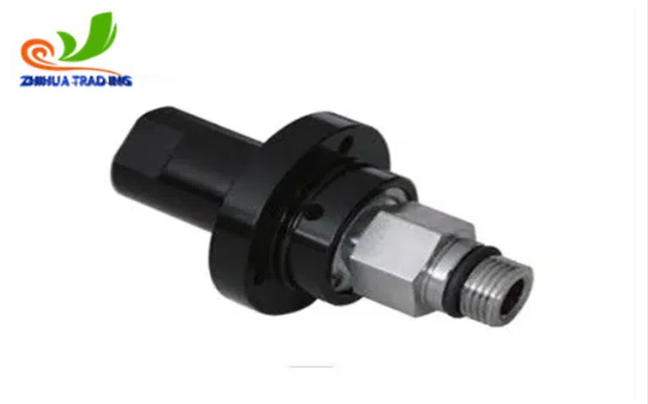

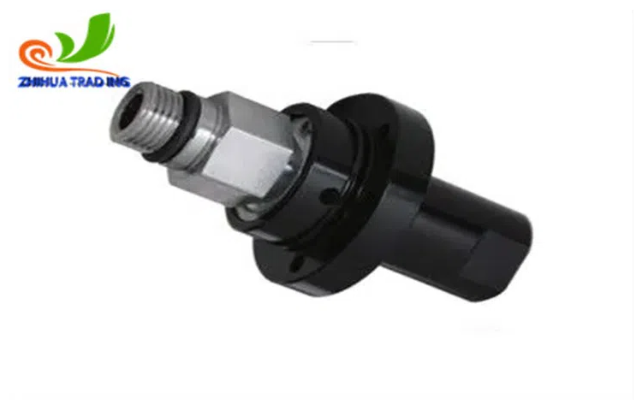

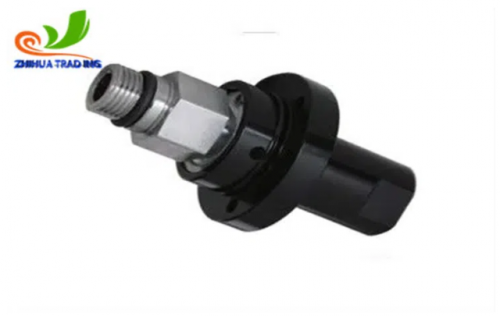

High Speed Swivel Joint for Machine Tool Industry
Product Details
A rotary joint, also referred to as a rotary joint or rotating joint, provides a mechanical seal between a stationary supply pipe and a rotating drum or cylinder to permit the flow of heat transfer media into and/or out of the rotating roll. Heat transfer media typically used with rotary joints and rotating joints includesteam,water,hermal oil,coolant,airhydraulic oil.
Features
High precision bearings operate stably without vibration
Labyrinth seal
Leakage holes are used to protect the bearings
Stainless steel spring mounted outside the fluid
Excellent balanced seal design
Aluminum alloy shell
Sealing ring with special microstructure improves product performance
Product Mix
1. End cap
2. Shell
3. Outer tube
4. Graphite ring
5. Stationary ring seat
Parameters
|
Speed |
12000RPM |
Temperature |
70℃ |
|
Pressure |
70~110Mpa |
Media |
Coolant |
Packing&Delivery
By the same token, some countries have marine transportation business, then we use the most economical and safe marine transportation. However, there are no ports near some countries, so you can use adjacent ports or rail transportation, which will save some costs.
FAQ
Q:Are you manufacturer or trading company?
A:Zhihua is a professional manufacturer.
Q:Could you provide custom size product for us?
A: We welcome custom size and can arrange the production according to your drawing or request.
Q:How does your factory do regarding quality control?
A:"Quality is priority. we always attach great importance to quality controlling from the very beginning
to the very end.
Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q:How long the warranty will be?
A: 1 year warranty.
