Paper Pulp Vibrating Screen
Product Description
Paper Pulp Vibrating Screen Machine is a specialized equipment used for the screening of pulp in the papermaking industry. It helps to remove unwanted impurities and ensures a smooth flow of pulp for further processing.
The screen machine consists of a vibrating motor, screen frame, inlet, and outlet. The motor transmits power to the screen frame via a flexible coupling, which causes the screen to vibrate. The pulp is fed into the inlet and passes through the screen, where the impurities are separated from the pulp. The clean pulp is then discharged from the outlet.
The machine is made of high-quality stainless steel to ensure its durability and resistance to corrosion. It has a compact structure, and the screen can be easily replaced when necessary. The vibrating motor can be adjusted to achieve the desired amplitude and frequency, depending on the type of pulp being screened.
The Paper Pulp Vibrating Screen Machine is an essential tool for the papermaking industry, as it helps to improve the quality of pulp and increase production efficiency.
Features
1. Working consistency: 1%
2. To remove bigger rejects to get accept pulp
3. Performance scree plate, is used for coarse screen
4. Slot screen plate, is used for fine screen
5. Corse screen is used after hydrapulper
6. Fine screen is used after pressure screen

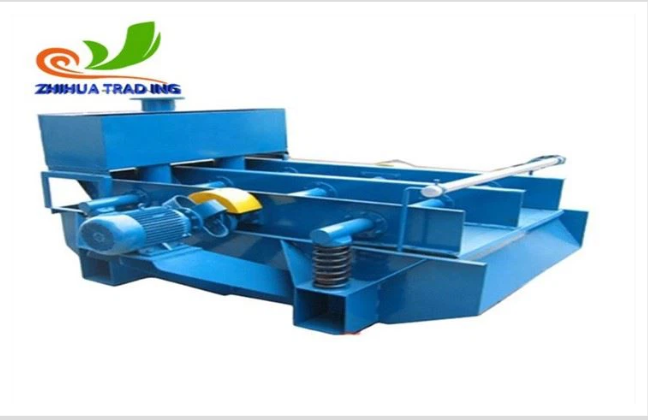

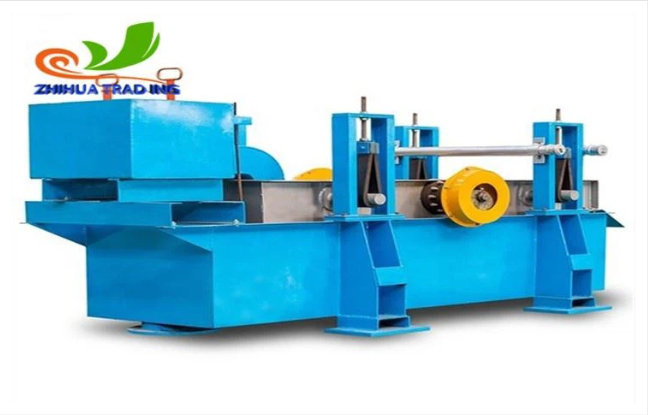

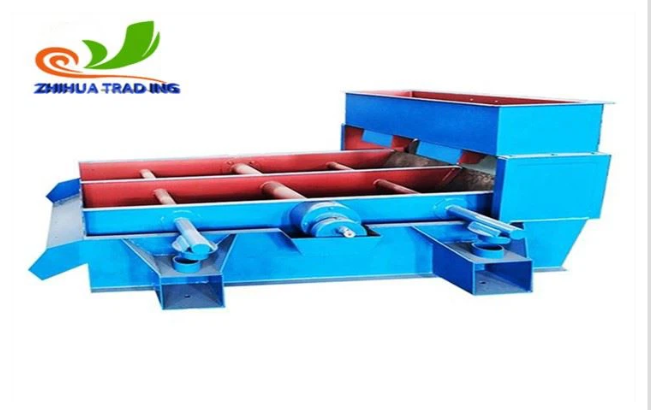

Product Show
Application
1. Paper making mill6. Egg tray making mill
Parameters
| Name | Vibrating screen | |||
| Model | AT-2 | AT-3 | AT-4 | AT-5 |
| Screen area(㎡) | 1 | 2 | 3 | 4 |
| Amplitude | 710 | 710 | 710 | 710 |
| Capacity（T/D） | 2-10 | 10-20 | 20-30 | 30-40 |
| Driving Method | belt driving | belt driving | belt driving | belt driving |
| Bearing | Made in China | Made in China | Made in China | Made in China |
| Motor（KW） | 2.2-4 | 3-4 | 5.5-4 | 7.5-4 |
| Screen plate size（m) | 2×0.5 | 2×1 | 2×1.5 | 2×2 |
| Weight（kg） | 350 | 500 | 850 | 1100 |
Packing&Shipping
Packing
Products will packaged according to their shapes, weight, transport distance and transport modes.
Large machines will be packaged in sections.every part export machinery will be in standard export package seaworthy wooden case waterproof film, straw rope, carton box etc.
Shipping
Sea transportation is from Qingdao seaports or other china main ports.the delivery time is decided by machine types.But we also try to make it follows your needs.
