Pulp Impurity Remover Cleaner For Paper Mill
Product Description
The high-concentration pulp impurity remover cleaner makes use of the high-speed Centrifugal force of the slurry itself entering the body. The impurities such as heavy sand, small stones, iron nails and so on descend along the pipe wall due to the centrifugal force and are discharged from the heavy slag hole. In the design of heavy slag bucket, a slow-down system is adopted to slow down the incoming heavy slag so that it can not return to the upper part of the machine body, and the fine pulp such as the pulp fiber with lighter impurities, because the Centrifugal Eddy current will concentrate on the central part of the pipe and be discharged along the central pipe, to achieve the effect of light and heavy residue separation.

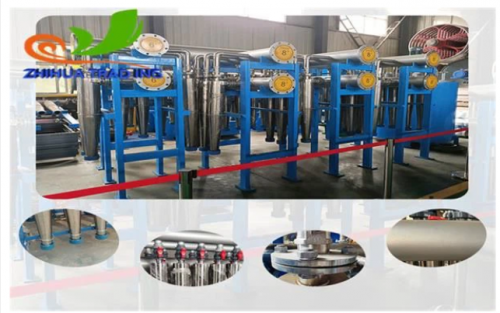

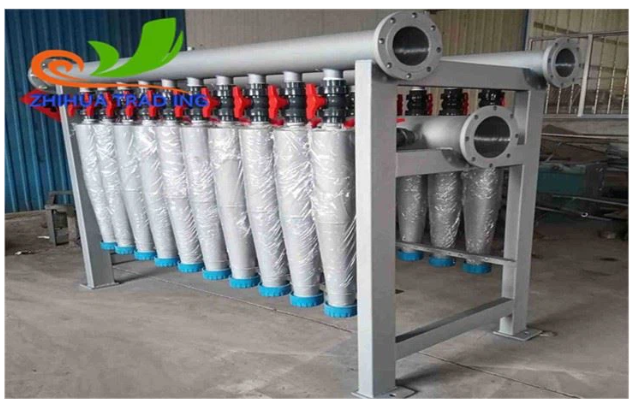

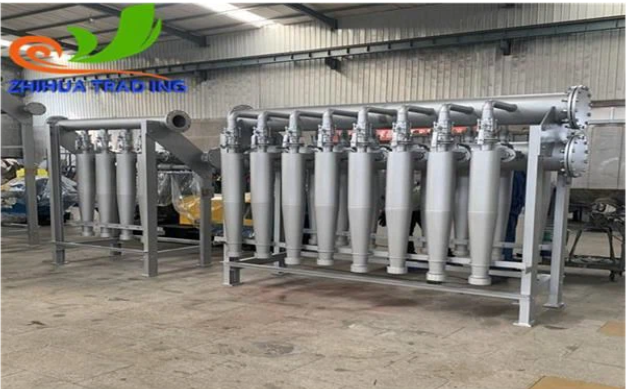

Product Show
Advantages
1. Divided design, the cleaners can be divided into 3-4 parts, which makes it easier for assembly and replace.
Technical data
| Model | AT-400 | AT-600 | AT-800 | AT-1000 | AT-1500 |
| Flow of Single Equipment(L/min) | 400 | 600 | 800 | 1000 | 1500 |
| Inlet consistency(%) | 0.3-1 |
0.3-1.2 |
0.4-1.2 | 0.4-1.5 | 0.4-1.5 |
| Pressure of Inflow Pulp(MPa) | 0.2-0.4 | 0.2-0.4 | 0.3-0.4 |
0.3-0.4 |
0.4-1.5 |
| Diameter of Desiagging Outlet(mm) | 4-10 | 6-12 | 6-14 | 6-18 | 6-18 |
Packing&Shipping
Packaging
Products will packaged according to their shapes, weight, transport distance and transport modes.
Shipping
Sea transportation is from Qingdao seaports or other china main ports.the delivery time is decided by machine types.But we also try to make it follows your needs.
